Ultrasonic meteorological station, also known as ultrasonic meteorological monitoring station, is an integrated ultrasonic meteorological monitoring station. Ultrasonic meteorological stations can monitor meteorological factors such as wind speed, direction, temperature, humidity, and pressure in real time and accurately, providing strong data support for meteorological forecasting, agricultural production, air transportation, and other fields

1. Product Introduction

The ultrasonic weather station (with provincial calibration certificate) is a high-precision automatic weather observation device that is highly integrated, low-power, can be quickly installed, and is easy to use for field monitoring.

The equipment requires no debugging and can be quickly deployed. It is widely used in meteorology, agriculture, forestry, environmental protection, ocean, airports, ports, scientific investigations, campus education and other fields.

Compared with traditional ultrasonic weather stations, our products overcome the need for high-precision timers and avoid inaccurate measurements caused by sensor startup delays, demodulation circuit delays, and temperature changes.

The device innovatively uses a five-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, and air pressure. It can realize 24-hour continuous online monitoring of outdoor meteorological parameters and output the five parameters to the user at one time through the digital communication interface.

2. Product Features

1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid being blocked by natural wind.

2. The principle is to transmit continuous frequency-converting ultrasonic signals and detect wind speed and direction by measuring the relative phase.

3. Integrated sensor for wind speed, wind direction, temperature, humidity and air pressure

4. GPRS is standard ; RJ45, Ethernet, 4-20ma, Lora transparent transmission, 4G transparent transmission, Bluetooth, 485 to USB and other transmission methods are optional

5. Two-meter carbon steel bracket, the sensor can be directly mounted without flange on the top

6. The sensor housing is made of imported ASA material, which is more effective against salt spray and other environments, and the protection level reaches IP65 or above

3. Technical parameters

1. Wind speed (standard): Range: 0-60m/s; Resolution: 0.01m/s; Accuracy: ±0.1m/s

2. Wind direction (standard): Range: 0-360°; Resolution: 1°; Accuracy: ±2°

3. Air temperature (standard): Range: -40-85℃; Resolution: 0.01℃; Accuracy: ±0.3℃ (25℃)

4. Air humidity (standard): Range: 0-100%RH; Resolution: 0.01%RH; Accuracy: ±3%RH

5. Atmospheric pressure (standard): range: 30-110Kpa; resolution 0.01Kpa; accuracy: ±0.25%

6. Other optional elements : piezoelectric rainfall, TSP, carbon monoxide, sulfur dioxide, nitrogen dioxide, optical rainfall, ozone, PM2.5, PM10, noise, total radiation, illuminance, carbon dioxide, oxygen content, hydrogen sulfide, hydrogen, chlorine, ammonia, hydrogen chloride, hydrogen cyanide, hydrogen fluoride, phosphine, chlorine dioxide, ethylene oxide, nitric oxide, hydrogen peroxide, tetrahydrothiophene, formaldehyde, VOC, catalytic combustion combustible gas

7. Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A

8. Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

9. Solar power supply, lead-acid battery, optional 30W 20AH/50W 40AH/100W 100AH. Charge controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%

10. Data upload interval: 1 minute - 1000 minutes adjustable

11. Android 7-inch touch screen, screen size: 1024*600 RGB LCD

12. The whole machine has obtained the provincial third-party test report

13. The whole machine has obtained the China Energy-saving and Environmental Protection Product Certification

14. The whole machine has obtained the China Green Environmental Protection Product Certification

15. The manufacturer has ISO quality management system, environmental management system, and occupational health management system certification

16. The manufacturer has a computer software registration certificate

17. The manufacturer is a 3A-level credit enterprise

18. The manufacturer is a five-star after-sales service advanced unit

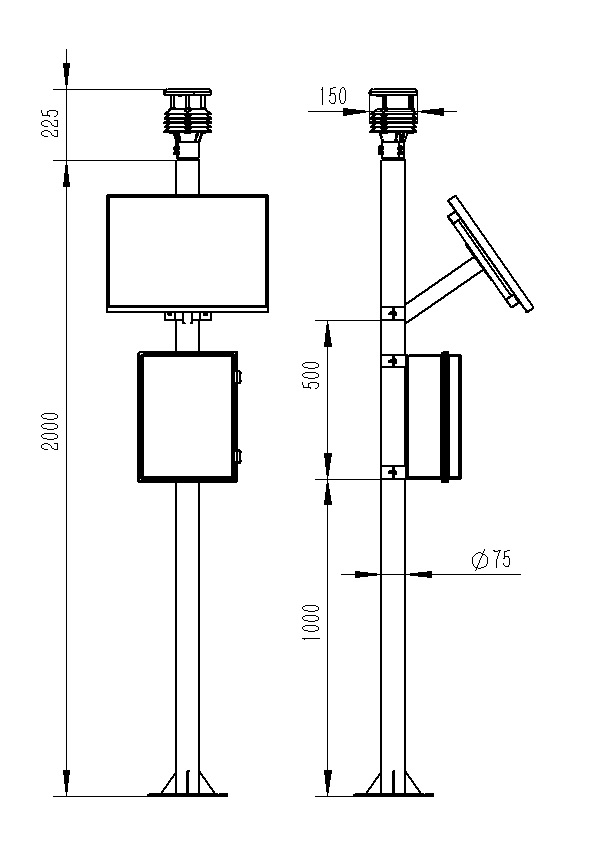

5. Product Structure Diagram

6. Introduction to host computer software

1. PC stand-alone version of data receiving, storage, viewing and analysis software

2. Support serial port data reception, processing and display

3. Support json string, modbus485 and other communication methods

4. The storage time can be set by yourself. The acquisition time can be set by yourself in modbus485 acquisition mode

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.

6. Support data post-processing function

7. Support external running of javascript scripts

7. Android APP Introduction

1. Android stand-alone data receiving, storage, viewing and analysis software

2. Support Bluetooth data reception

3. The software receives and processes the data in the background after the phone goes into sleep mode

4. Automatically add devices with json data, and add devices with modbus devices by scanning codes

5. Support historical data viewing, analysis, and table export, support curve display, and single data point viewing.

6. Support data post-processing function

7. Support external running of javascript scripts

8. Introduction to Cloud Platform

1. CS architecture software platform, supports direct observation via mobile phone and PC browser , no need to install additional software.

2. Support multiple accounts and multiple devices to log in

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and view device information.

7. Support data curve analysis

8. Support data export in table format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11. Support external running of javascript scripts
