The water quality buoy monitoring station is a water quality monitoring device used to monitor the quality of water bodies and environmental conditions in real time. It can be equipped a variety of high-precision sensors to monitor core parameters such as water temperature, pH value, dissolved oxygen, conductivity, turbidity, ammonia nitrogen, etc., and is with solar power supply and low power consumption, which can achieve long-term unmanned monitoring, automatic data collection and transmission.

1. Functional Introduction

1. The SFB floating buoy water quality monitoring station adopts an enhanced integrated conical structure, which increases the stability and durability of the equipment and is more in line with the engineering of the floating body.

Real-time measurement of hydrological, water quality and meteorological parameters in lakes or watersheds can be carried out. The system integrates data collection and transmission, and has the functions of over-standard SMS alarm and automatic light sensing. It has the characteristics of many measuring parameters, high measuring accuracy, large storage capacity, convenient networking, and stable operation. The buoy adopts an unattended intelligent control system to complete the data collection of multiple sensors and the transmission of data; the solar panel and the large-capacity storage battery form a solar power supply system, which can ensure the power supply required for the system to work long-term in the wild; the buoy body is made of ultra-high molecular weight polyethylene material, which has good corrosion resistance, prevents biological attachment, does not fade, has strong collision resistance, anti-lightning, no magnetism and other characteristics, which is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.

2.SFB06 type float buoy is composed of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, turbidity), data logger, communication system, power supply system, overall  bracket, water quality monitoring platform. At the same time, it can be extended to include chlorophyll,COD and other water quality parameters. The data logger has data acquisition, real-time clock, data定時 storage, parameter setting and standard2G/4G (GPRS) communication function.

Second, product features

1. Easy deployment: All types of probes are highly integrated, easy to install; free cloud platform service is provided, and the system is quickly launched;

2. Easy maintenance: The equipment can operate independently after installation, without the need for manual supervision, and can also be monitored remotely to ensure the normal operation of the equipment;

3. Easy to expand: all sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand the monitoring parameters;

4. Low power consumption: The device can achieve low power consumption state, allowing long-term operation, increasing the convenience of device use;

5. Real-time: Data monitored by the device is transmitted to the cloud platform in real-time, enhancing the timeliness of environmental data feedback.

Three, Technical Parameters

1. Subject parameters

Main parameters of the optional sensor

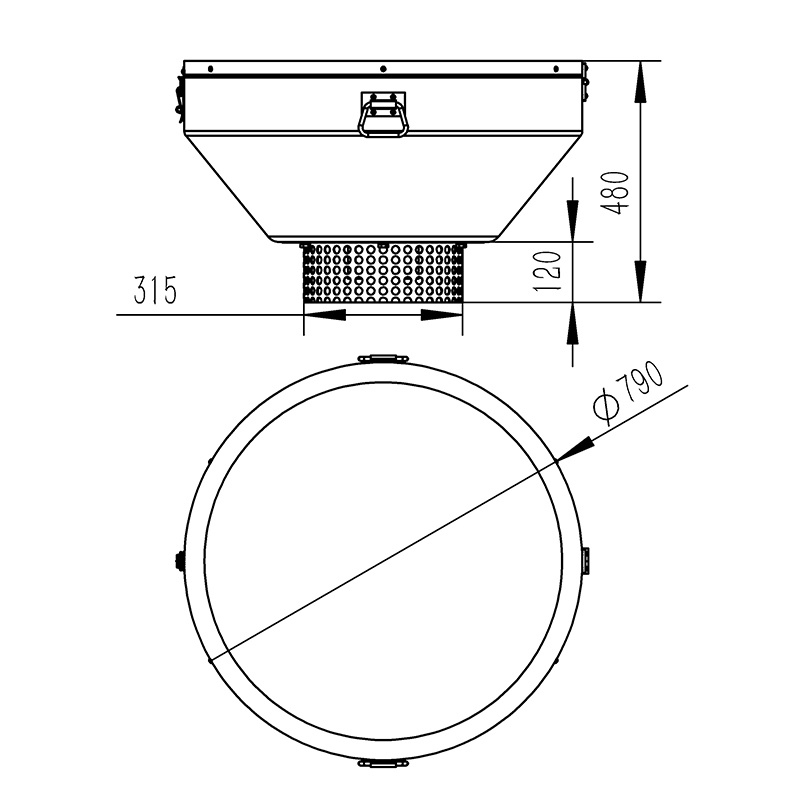

IV. Product Size Chart

5. Equipment installation requirements

1. Stay away from high power radio transmitting sources

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. As close as possible to the data transmission network

4. Stay away from strong electromagnetic interference

Six, Cloud Platform Introduction

1. CS architecture software platform, supports mobile phones, PC browsers to directly observe. No need to install additional software.

2. Support multiple accounts, multiple devices login

3. Support real-time data display and historical data display dashboard

4. Cloud server. Cloud data storage, stable and reliable, easy to expand, load balancing.

5. Support SMS alarm and threshold setting

6. Support for map display, view device information.

7. Support data curve analysis

8. Support for data export in table format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support for data post-processing functions

11. Support for external JavaScript scripts
